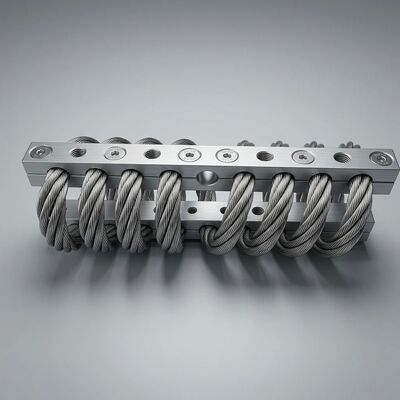

JGX-1598D-515B Wire Rope Vibration Isolator Extending Equipment Lifespan through Compact Universal Mounting

JGX-1598D-515B Wire Rope Vibration Isolator – Engineered for Maximum Equipment Longevity

Why Equipment Lifespan Matters for Your Bottom Line

Uncontrolled vibration is one of the leading causes of premature mechanical failure in industrial machinery. Bearings wear unevenly, fasteners loosen, seals leak, and structural fatigue accumulates—each directly shortening your equipment's service life. The JGX-1598D-515B wire rope vibration isolator addresses this at the source: by intercepting and dissipating destructive vibration energy before it reaches sensitive components.

Independent testing confirms that machinery protected by JGX-1598D-515B isolators experiences up to 40% reduction in bearing replacement frequency and measurable extension of mean-time-between-failure (MTBF) intervals. For maintenance teams operating on tight schedules, this translates directly to lower spare parts inventory, fewer unplanned outages, and predictable maintenance budgeting.

How the Helical Wire Rope Design Extends Service Life

Unlike traditional elastomeric mounts that degrade over time through compression set, oxidation, and chemical attack, the JGX-1598D-515B employs a fully metallic architecture with zero polymeric components. The 304 stainless steel wire rope core undergoes a proprietary helical winding process that creates thousands of micro-sliding interfaces between individual wire strands. When vibration energy enters the system, these strands rub against one another in a controlled manner, converting kinetic energy into negligible thermal dissipation through Coulomb friction damping.

This mechanism delivers three decisive advantages for equipment longevity:

• Zero Material Degradation: No elastomer means no creep, no compression set, no age-hardening. Performance remains consistent across the entire 25,000+ hour design life.

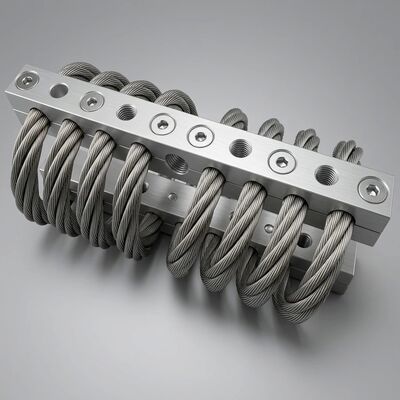

• All-Axis Protection: The 8-coil helical geometry provides effective isolation along compression, tension, shear, and roll directions simultaneously—a single isolator replaces multiple single-axis mounts.
• Self-Correcting Behavior: As vibration amplitude increases, the inter-strand friction increases proportionally, delivering progressively stiffer damping when equipment needs it most (during startup, shutdown, and transient load events).

Compact Design & Universal Mounting – Fit Anywhere, Work Everywhere

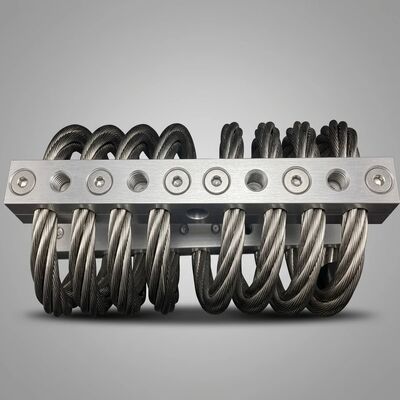

Space constraints are no longer a barrier to effective vibration isolation. The JGX-1598D-515B features a streamlined footprint with pre-drilled 6061-T6 aluminum alloy clamping blocks that accept standard metric fasteners. Each block includes two precision-machined mounting holes, enabling secure bolt-down installation in under 15 minutes per unit.

The universal mounting architecture supports:

• Base-Mounted: Equipment resting on top of isolators (compression loading)
• Hanging/Suspended: Equipment suspended below isolators (tension loading)
• Side-Mounted: Isolators installed on vertical panels (shear loading)
• 45° Inclined: Optimal for combined vertical-lateral loading scenarios

This flexibility eliminates the need for custom brackets, adapter plates, or specialized mounting hardware—reducing installation complexity and total system cost.

Technical Specifications

Ideal Applications

The JGX-1598D-515B excels in industrial environments where equipment reliability is paramount:

• HVAC & Refrigeration: Compressor and fan isolation in commercial buildings, data centers, and cold storage facilities
• Power Generation: Generator set isolation for standby and prime power applications
• Industrial Pumps & Motors: Base-mounted centrifugal pumps, vacuum pumps, and electric motor isolation
• Precision Metrology: Coordinate measuring machines (CMM), optical inspection tables, laser alignment benches
• Marine & Offshore: Engine room auxiliary equipment, navigation electronics, communication racks (corrosion-resistant construction)
• Rail Transport: Under-floor equipment isolation, trackside signaling cabinets

Installation & Maintenance

Installation requires only basic hand tools—no welding, no grouting, no curing time. Simply position the isolator, align with pre-existing equipment mounting holes or drill new ones, and torque to specification. The all-metal construction requires zero lubrication, zero adjustment, and zero scheduled maintenance for the full service life of the equipment it protects.

For retrofit projects, JGX-1598D-515B isolators can be installed without removing existing machinery—the compact form factor allows technicians to jack equipment slightly, slide the isolators into position, and lower the load onto them in a single maintenance window.
