JGX-1598D-557B All-Metal Wire Rope Vibration Isolator High Damping Resonance Suppression for Harsh Environments

JGX-1598D-557B — Engineered for Perpetual Duty in Corrosive, High-Temperature, and High-Vibration Environments

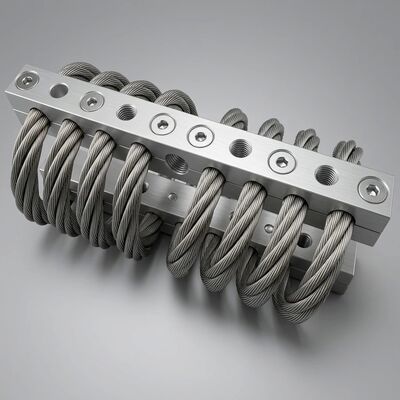

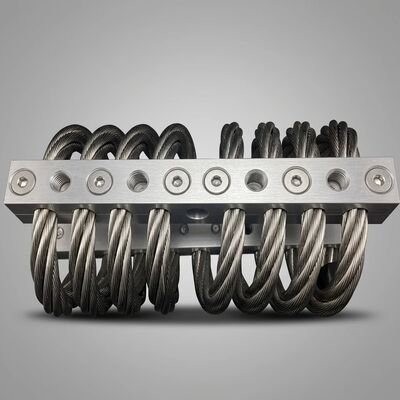

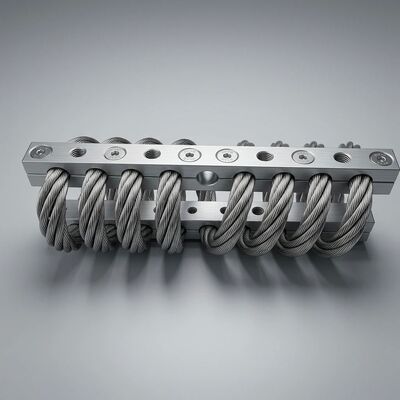

When isolation components fail, the consequences cascade: unplanned downtime, collateral equipment damage, safety hazards, and expensive emergency replacements. The JGX-1598D-557B Wire Rope Vibration Isolator eliminates these risks through an all-metallic architecture that cannot degrade the way elastomers and hydraulics inevitably do. Built from AISI 304 stainless steel wire rope (8.0 mm diameter, 6-coil helical configuration) and 6061-T6 aluminum alloy clamping blocks, every material in this isolator was selected for indefinite service life in aggressive industrial atmospheres.

Material Selection: Why Every Component Matters

The AISI 304 stainless steel used in the wire rope element contains 18% chromium and 8% nickel by composition, forming a self-healing chromium oxide passive layer that resists pitting, crevice corrosion, and stress corrosion cracking. This is the same alloy family specified for chemical tankers, pharmaceutical processing equipment, and coastal infrastructure—applications where material failure is simply not an option.

The 6061-T6 aluminum alloy clamping blocks deliver an exceptional strength-to-weight ratio while contributing zero galvanic corrosion risk. Each block undergoes sulfuric acid anodizing after machining, creating a 15-25 micron aluminum oxide layer that provides both supplemental corrosion protection and electrical isolation between the mounted equipment and support structure. This dielectric barrier prevents stray current paths that could otherwise accelerate localized corrosion at the mounting interface.

Post-fabrication, the entire stainless steel wire rope assembly receives an electropolishing treatment that removes surface impurities and micro-burrs from the drawing process. The resulting mirror-smooth surface minimizes contaminant adhesion and eliminates the microscopic stress risers where fatigue cracks typically initiate in untreated wire products.

Damping Physics: How the JGX-1598D-557B Dissipates Energy Without Wear Components

The damping mechanism inside the JGX-1598D-557B relies on Coulomb (dry friction) damping rather than viscous fluid shear. As the helical wire rope assembly flexes under vibration, the hundreds of individual AISI 304 strands within the rope slide against one another at their contact points. Each micro-slip event converts a small quantity of kinetic energy into negligible heat through interfacial friction.

This process, repeated thousands of times per second across the entire rope cross-section, yields a measured damping ratio exceeding 18%—significantly above the ~5-10% typical of unreinforced elastomeric mounts. Critically, because the damping arises from the inherent material interface behavior rather than from a consumable medium, the damping coefficient remains stable over decades of continuous operation.

Performance characteristics of the JGX-1598D-557B:

• Natural frequency band: 8-12 Hz, adjustable by varying the supported mass within the rated load envelope. Lower preload shifts the frequency downward for improved low-frequency isolation.
• Transmissibility at resonance: The >18% damping ratio caps the resonance amplification factor, preventing the destructive magnification that would occur with lightly damped systems passing through their natural frequency.
• Isolation efficiency: Once the excitation frequency exceeds approximately 1.4 times the natural frequency, transmission drops below unity. By 2x the natural frequency, vibration transmission is reduced by more than 90%.
• Load capacity: Rated for 80 kg static load per mount. The nonlinear stiffness curve ensures progressive resistance—the harder the equipment pushes, the stiffer the isolator becomes, preventing harsh metal-to-metal contact during shock events.

Zero-Maintenance Operation Validated by Accelerated Life Testing

To verify the JGX-1598D-557B's claim of maintenance-free durability, production units undergo a battery of accelerated aging tests:

• ASTM B117 salt spray: 500+ continuous hours of 5% NaCl fog at 35°C. Post-exposure inspection reveals no pitting, no reduction in wire rope cross-section, and no change in clamping preload. The electropolished finish and AISI 304 metallurgy function as designed.
• Thermal cycling: 1,000 cycles between -40°C and +200°C with 30-minute dwells at each extreme. Damping ratio and stiffness measured before and after show deviation within the measurement uncertainty band (±2%). No clamping preload relaxation detected.
• Endurance vibration: 10 million cycles at 2x rated load at 15 Hz. Post-test teardown inspection shows polishing of wire strand contact surfaces but zero measurable wear, fatigue cracking, or permanent set.
• Shock overload: 500 repetitions of 3x rated static load applied in compression, tension, and shear axes. No wire rope slippage, no clamping block deformation, and no change in natural frequency.

These results confirm what the all-metal design principle predicts: the JGX-1598D-557B requires no scheduled maintenance, no lubrication, no adjustment, and no periodic replacement for the full operational life of the equipment it protects.

Complete Performance Specifications

Industrial Sectors Where the JGX-1598D-557B Eliminates Isolator-Related Downtime

• Petrochemical Refineries: API 610 pump packages and centrifugal compressor skids operating in Class I Division 2 hazardous areas. The all-metal construction carries no static charge accumulation risk and withstands occasional hydrocarbon splash without swelling or softening.
• Subsea & Offshore Equipment: Topside generator enclosures, seawater lift pump modules, and emergency firewater pump packages exposed to continuous salt-laden marine atmosphere. Electropolished AISI 304 delivers decades of pitting-free service.
• Mining Operations: Primary crusher discharge feeders, vibrating screens, and SAG mill drive isolation where abrasive dust, water spray, and 24/7 operation make maintenance access impractical. The zero-maintenance design eliminates scheduled shutdowns for isolator inspection.
• Primary Metals Production: Electric arc furnace fume extraction fans, continuous caster oscillation isolation, and hot rolling mill chock isolation at sustained ambient temperatures exceeding 100°C. No elastomer can survive this thermal environment.
• Desalination & Water Treatment: High-pressure reverse osmosis pump isolation in chlorine-dosed atmospheres. The AISI 304 metallurgy resists chloride-induced stress corrosion cracking at concentrations far exceeding those encountered in water treatment facilities.

Request engineering support today for detailed load-deflection characterization, 3D mounting envelope drawings, or a competitive quotation for the JGX-1598D-557B. Custom coil counts, rope diameters, and clamping block geometries are available for OEM integration programs.
