JGX-2228D-1250B Fail-Safe Wire Rope Vibration Isolator for Plug-and-Play Wide Load Range Applications

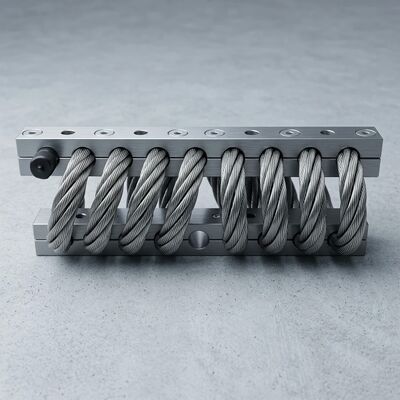

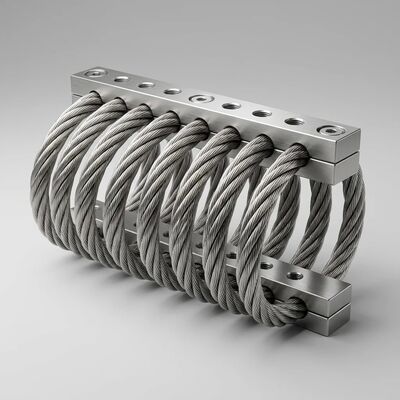

JGX-2228D-1250B Fail-Safe Wire Rope Vibration Isolator

Industrial equipment downtime has two root causes that vibration isolation products can either prevent or cause. The first is obvious: excessive vibration damages bearings, cracks welds, and loosens fasteners. The second is subtler: the vibration mount itself becomes the failure point when elastomers tear, bolts lose preload as rubber creeps, or a mount designed for one weight class is installed under a machine from a different class. The JGX-2228D-1250B is engineered to eliminate both failure modes simultaneously—through a fail-safe structural architecture that cannot tear, cannot creep, and covers a 12:1 load range with a single part number.

Fail-Safe Load Path: Why It Cannot Pull Apart

Every conventional elastomeric mount has a hidden design vulnerability: the rubber element is simultaneously the spring, the damper, and the sole structural connection between equipment and foundation. Bond failure at the rubber-to-metal interface—triggered by thermal cycling, ozone attack, or tensile overload—severs the only load path. The equipment is no longer restrained.

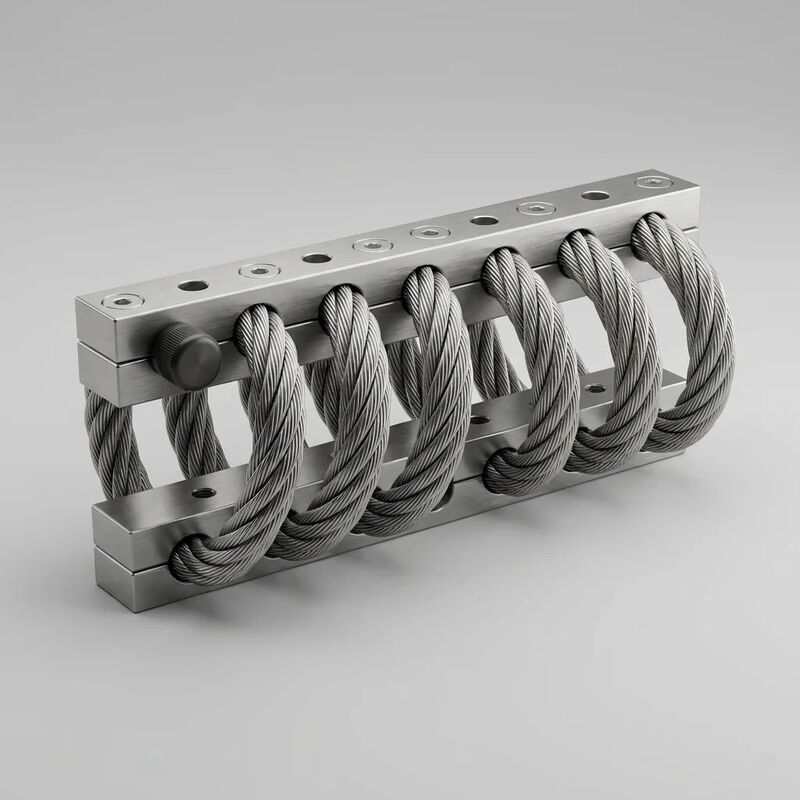

The JGX-2228D-1250B eliminates this single-point-failure architecture through its fail-safe structural design. The load path is: mounting bolt → 6061-T6 aluminum clamp block (upper) → 10-coil 316L wire rope helix → 6061-T6 aluminum clamp block (lower) → mounting bolt → foundation. Every element in this chain is metallic, mechanically interlocked, and incapable of debonding because there are no bonds. The rope is captured by circumferential clamping force across its entire diameter at both ends—it cannot pull out of the clamps under any tensile load the rope itself can withstand.

Within the helix itself, redundancy is distributed across 133 individual steel wires (7 strands * 19 wires per strand). A fracture in any single wire—an exceedingly unlikely event given the 316L material's fatigue endurance—reduces the rope's cross-sectional area by 0.75%. The remaining 132 wires continue to carry the static load and provide Coulomb friction damping through their intact inter-strand contact interfaces. This is not a designed-in safety factor added to a fundamentally vulnerable architecture; it is an inherent property of stranded wire rope: load-sharing across every constituent filament, with no mechanism for a single filament failure to propagate.

The practical consequence: operators can specify the JGX-2228D-1250B for equipment where a mount failure would create a safety incident or an unacceptable production outage, without adding secondary restraints, snubbers, or redundant mount pairs. The isolator is its own backup.

Installation in 15 Minutes: Plug-and-Play by Design

Vibration mount installation has historically been a precision task requiring alignment dial indicators, shim stock, and experienced millwright judgment. The JGX-2228D-1250B redefines installation as a plug-and-play bolt-down operation for four reasons:

1. Oversized clearance holes: The Ø12.5 mm through-holes on a standard M12 bolt provide ±2 mm of lateral positional tolerance. The mount does not need to be precisely located before bolts are started—position it approximately, drop the bolts through, and the clearance absorbs the positioning error.
2. No pre-compression required: Unlike spring isolators that must be preloaded to a specific installed height (requiring measurement of spring compression under static load), the JGX-2228D-1250B's progressive stiffness curve means the mount self-levels under the equipment's own weight. If one corner settles 1.5 mm lower than another due to an uneven foundation, the stiffness differential is small enough that load-sharing across mounts remains within acceptable limits.
3. Parallel machined faces: Both clamp blocks have mounting surfaces finish-machined to 0.05 mm flatness. Running a bolt through the hole and torquing it to 80 N·m produces uniform preload across the entire clamp face without shimming, because there is no gap to close and no compliant layer to compress non-uniformly.
4. Standard tooling only: M12 hex socket or hex head bolts, a calibrated torque wrench, and flat washers. No dial indicators, no feeler gauges, no hydraulic pre-tensioning equipment. A maintenance technician with basic hand-tool training can replace a full set of mounts during a scheduled shift window.

The time saving is measurable. Replacing four elastomeric mounts on a compressor skid typically requires: unbolting old mounts (10 min), cleaning corroded base plates (15 min), positioning and shimming new mounts to level (45 min), bolting and torqueing (10 min), verifying alignment (15 min)—total approximately 95 minutes. The same skid with JGX-2228D-1250B mounts: unbolt old (10 min), position new (5 min), bolt and torque (15 min), verify (5 min)—total approximately 35 minutes for four mounts, under 10 minutes each. In a production environment where downtime costs $2,000–5,000 per hour, the 60-minute difference per skid pays for the mounts on the first replacement cycle.

One Mount, Twelve-to-One Load Range

The JGX-2228D-1250B's wide load capacity range of 100 kg to 1,200 kg is not achieved by offering multiple spring-rate options. It is inherent in the non-linear stiffness curve of the helical wire rope geometry. At light loads (100–300 kg), the coils undergo primarily elastic bending—low stiffness, approximately 45–90 N/mm. As load increases into the mid-range (300–800 kg), strand compaction within each coil adds a second stiffness component, raising the effective rate to approximately 90–270 N/mm. Above 800 kg, geometric stiffening of the fully compacted helix dominates, producing the highest stiffness regime at up to 545 N/mm. The isolator progressively stiffens as load increases, naturally matching its force capacity to the applied weight without any adjustment mechanism.

For a maintenance manager overseeing 30 rotating machines ranging from a 250 kg centrifugal pump to a 2,800 kg screw compressor (4 mounts * 700 kg each), the JGX-2228D-1250B covers the entire fleet with one part number. One procurement line item. One set of torque specifications. One installation procedure. The simplification of inventory, training, and spares management delivers operational savings that compound annually—independent of the vibration isolation performance itself.

Technical Specifications

Application Domains

• Industrial Compressor Stations: Reciprocating and screw compressor packages (200–3,000 kg total skid weight) in petrochemical plants, gas processing facilities, and refrigeration systems. The 10-coil design handles the low-frequency pulsation signature of reciprocating machines without amplification at the 1* and 2* running speed harmonics.
• Diesel & Gas Generator Sets: Standby and prime-power gensets from 50 kVA to 600 kVA, where the wide load range eliminates the need to stock separate mount SKUs for different generator frame sizes within a rental or service fleet. The through-bolt design provides positive tie-down for seismic restraint without additional hardware.
• Industrial Pump Skids: Multistage centrifugal, progressive cavity, and diaphragm pump assemblies in water treatment, mining dewatering, and chemical transfer applications. The progressive stiffness curve accommodates the hydraulic thrust reaction forces that shift the effective static load during pump startup and shutdown transients.
• Marine Engine Room Equipment: Propulsion engine flexible mounts, gearbox supports, and auxiliary generator foundations on workboats, tugboats, and crew transfer vessels. The all-316L construction with hard-anodized clamps resists salt-spray pitting and galvanic corrosion in engine-room atmospheres without protective coatings that require inspection and renewal.
• Heavy Off-Highway Cab Mounts: Operator cabin isolation on construction excavators, wheel loaders, bulldozers, and agricultural harvesters where whole-body vibration exposure limits are regulated by occupational health standards. The fail-safe load path ensures cabin retention in rollover scenarios.
• Industrial Fan & Blower Foundations: Large centrifugal and axial fans (500–3,000 kg) in cement kilns, steel mill dedusting systems, and power station draft plants. The progressive stiffness handles the impulse loading from surge events without mount damage.

Inventory Simplification Economics

A mid-sized industrial facility with 50 rotating machines across 8 weight classes typically stocks 4–7 different vibration mount part numbers. Each SKU represents: a procurement line item with minimum order quantities and lead times; a shelf location in the storeroom; a training requirement for maintenance staff to know which mount fits which machine; and a risk of incorrect installation when a mount from the wrong bin is inadvertently used.

Consolidating to the JGX-2228D-1250B across the 100–1,200 kg per mount range reduces the mount inventory to one or two SKUs. The direct savings in purchasing administration, stockroom space, and misapplication risk are immediate. The indirect savings—from avoiding the production outage caused by discovering the wrong mount was installed during a night-shift repair—are harder to quantify but are the reason reliability engineers standardize on single-source solutions.

Traceability & Quality

Each JGX-2228D-1250B is laser-serialized on the aluminum clamp body. The quality dossier—including the 316L heat certificate, 6061-T6 billet lot certificate, anodizing process log, 100% load-deflection test curve, and dimensional inspection record—is archived digitally and retrievable by serial number for the product's service life. ISO 9001:2015 certified manufacturing with full material lot traceability from raw material receiving through final packaging.
