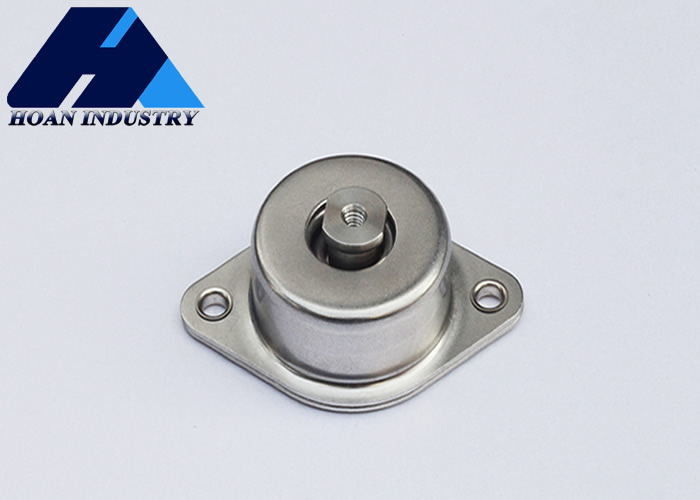

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Customizable Friction Damping Vibration Isolator

Cylindrical Spring Isolator

Mounting Installation Vibration Isolator

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

Hoan

मॉडल संख्या:

जेएमजेड-टीके1-40ए

हमसे संपर्क करें
बोली मांगें
उत्पाद का विवरण
सामग्री:
लचीला इस्पात
पत्तन:
Xi'an या निर्दिष्ट
तापमान की रेंज:
-40 ° F से 180 ° F
रंग:
चाँदी
लागू उद्योग:
ऊर्जा और खनन
गारंटी:
1 वर्ष
परिचालन तापमान:
-40 डिग्री सेल्सियस से 100 डिग्री सेल्सियस
लचीलापन:
उच्च
आघात अवशोषण:
उत्कृष्ट
सहनशीलता:
जादा देर तक टिके
प्रयोग:
कंपन को अलग करें
इंस्टॉलेशन तरीका:
बढ़ते
अनुकूलन:
अनुरोध पर उपलब्ध
आकार:
बेलनाकार
अलग -अलग दक्षता:
95% तक
प्रमुखता देना:

Customizable Friction Damping Vibration Isolator

,

Cylindrical Spring Isolator

,

Mounting Installation Vibration Isolator

भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
4
भुगतान शर्तें
एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
संबंधित उत्पाद
हमसे संपर्क करें
86-29-88292913
अब संपर्क करें
उत्पाद का वर्णन
JMZ-TK1-40A Friction Damping Vibration Isolators
The Ultimate Solution for Vibration Control in High-Precision Equipment
JMZ-TK Series
Guarding the "Precise Hearts" of "Made in China": The Application of JMZ-TK in High-End Industrial Machine Tools
High-end CNC (Computer Numerical Control) machine tools, known as "industrial machine tools," are the cornerstone of the manufacturing industry. Their machining precision directly determines product quality, and vibration is the primary factor affecting this precision. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave provide outstanding performance for maintaining stable operation of these precision systems.
Dual Protection Against Vibration
In machine tool applications, vibration originates from two main sources:
  • External Isolation: Effectively blocks transmission of environmental vibrations through the foundation, creating a static reference platform for machining processes.
  • Internal Energy Dissipation: High damping characteristics quickly attenuate internal vibrations from spindle rotation and cutting operations, improving surface finish and extending tool life.
Performance Benefits
The JMZ-TK series enables micron-level precision in critical applications including:
  • Aerospace titanium alloy components
  • Medical device precision implants
  • Optical lens molds
Structural Dimensions
JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining 0
Installation Dimensions (mm)
Model B M d A C ∅1 ∅2 H1 H2
JMZ-TK-2.5A~8A 46 6 4.1 58 20 55 22 36 3.6
JMZ-TK1-25A/40A/50A 63 12 8.2 78 20 70 22 56 6
Technical Parameters
Model Nominal Load (N) Load Range (N) Natural Frequency fn≤(Hz) Loading Working Height H0±1(mm) Limit Displacement Maximum Vibration Transmissibility ηv≤ Impact Resistance Test Service Life (year)
JMZ-TK-2.5A 25 20~30 33 42 4 3 100g 10
JMZ-TK-4A 40 30~50 20 70 7 3 60g 10
JMZ-TK1-25A 250 200~300
JMZ-TK1-40A 400 300~480
JMZ-TK1-50A 500 400~600
