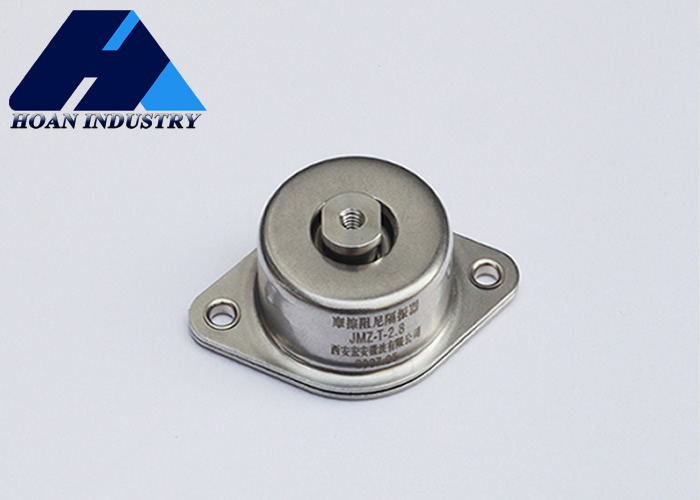

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

Hoan

मॉडल संख्या:

जेएमजेड-टी-2.6

हमसे संपर्क करें
बोली मांगें
उत्पाद का विवरण
उपलब्धता:
व्यापक रूप से उपलब्ध है
प्रोडक्ट का नाम:
वसंत अलगाव
समग्र चौड़ाई:
60 मिमी
इंस्टॉलेशन तरीका:
घुड़सवार या एम्बेडेड
माउन्टिंग का प्रकार:
ऊपर की प्लेट
संरचना:
पेचदार
रखरखाव:
कम रखरखाव
आघात प्रतिरोध:
मज़बूत
प्रकार:
कंपन अलगावक
वारंटी सेवा के बाद:
ऑनलाइन समर्थन
मशीनरी परीक्षण रिपोर्ट:
उपलब्ध नहीं है
गारंटी:
1 वर्ष
डिजाइन शैली:
औद्योगिक
प्रमाणन:
UL सूचीबद्ध, RoHS अनुरूप
अनुप्रयोग:
औद्योगिक इंजन माउंट्स
प्रमुखता देना:

Composite Friction Materials Vibration Isolator

,

60mm Overall Width Spring Isolator

,

1 Year Warranty Friction Damping Vibration Isolator

भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
4
भुगतान शर्तें
मनीग्राम, वेस्टर्न यूनियन, टी/टी, डी/पी, डी/ए, एल/सी
उत्पाद का वर्णन
JMZ-T-2.6 Friction Damping Vibration Isolators
Superior Performance with Composite Friction Materials and Stable Damping Force
JMZ-T Series Overview
Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.
Key Technical Advantages
  • Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
  • Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
  • Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
  • 3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
  • Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards
Technical Specifications
Model Pz-Direction Load (kg) Displacement Under Maximum Load (mm) d Weight (g) Vibration test Shock test Resonance frequency (Hz) Operating temperature range (℃)
JMZ-T-1.4 1.4 ≤0.6 ST4*0.7/ M7-7H ≤58 <4 30g,11ms <30 -65~+120
JMZ-T-2.6 2.6 See JMZ-T-1.4 for other specifications
JMZ-T-2.8 2.8 See JMZ-T-1.4 for other specifications
Performance Curves
Vibration curve:
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty 0
Impact curve:
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty 1

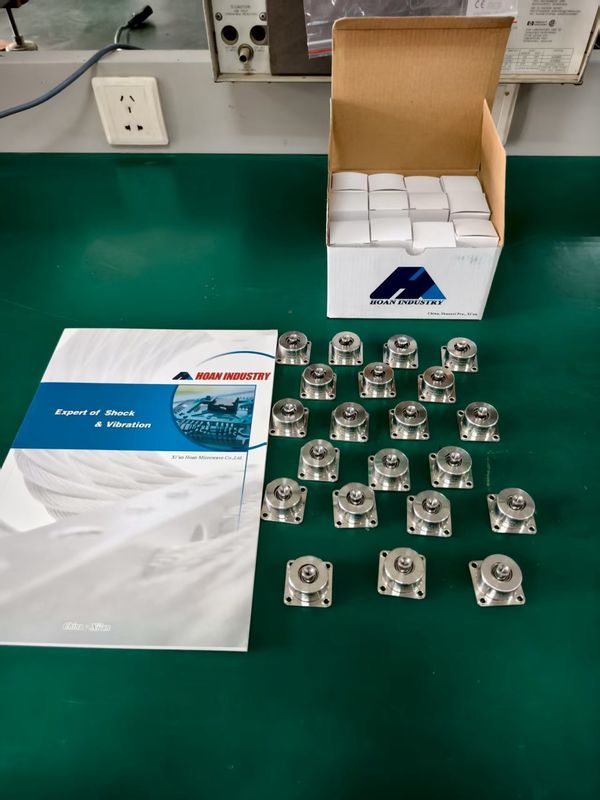

Application Example
JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty 2
