उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Hoan
मॉडल संख्या:

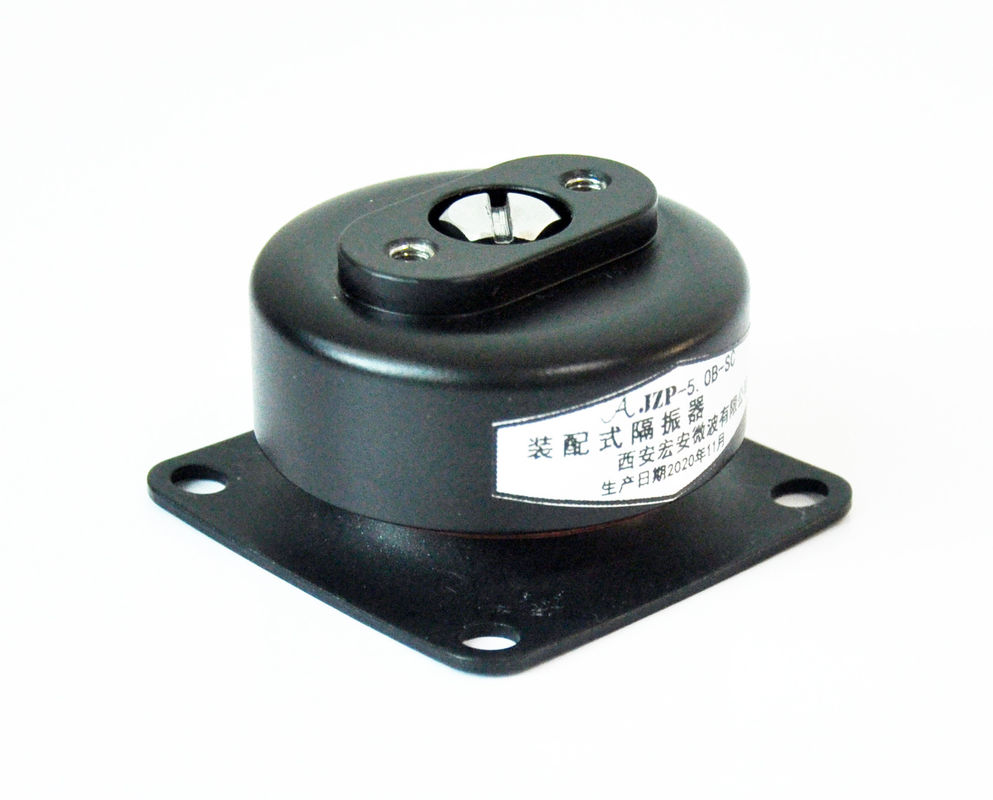

जेजेडपी-1.5बी-एससी
| Model | D (mm) | H±1 (mm) | h (mm) | A±0.2 (mm) | B (mm) | d | d2 | R | B (mm) |
|---|---|---|---|---|---|---|---|---|---|
| JZP-B-SC | 46 | 30 | 21 | 40 | 50 | M4 | ∅5.5 | 5 | 22 |
| Model | Nominal Load (kg) | Static Displacement (mm) | Working Temperature (℃) | Resonance Frequency (Hz) | Impact Test | Valid Period (year) |
|---|---|---|---|---|---|---|
| JZP-1.0B-SC | 1.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-1.5B-SC | 1.5 | Same as above | ||||
| JZP-2.0B-SC | 2.0 | Same as above | ||||
| JZP-2.5B-SC | 2.5 | Same as above | ||||
| JZP-3.0B-SC | 3.0 | Same as above | ||||
| JZP-3.5B-SC | 3.5 | Same as above | ||||
| JZP-4.0B-SC | 4.0 | Same as above | ||||
| JZP-5.0B-SC | 5.0 | Same as above | ||||
| JZP-5.5B-SC | 5.5 | Same as above | ||||
| JZP-6.0B-SC | 6.0 | Same as above | ||||
