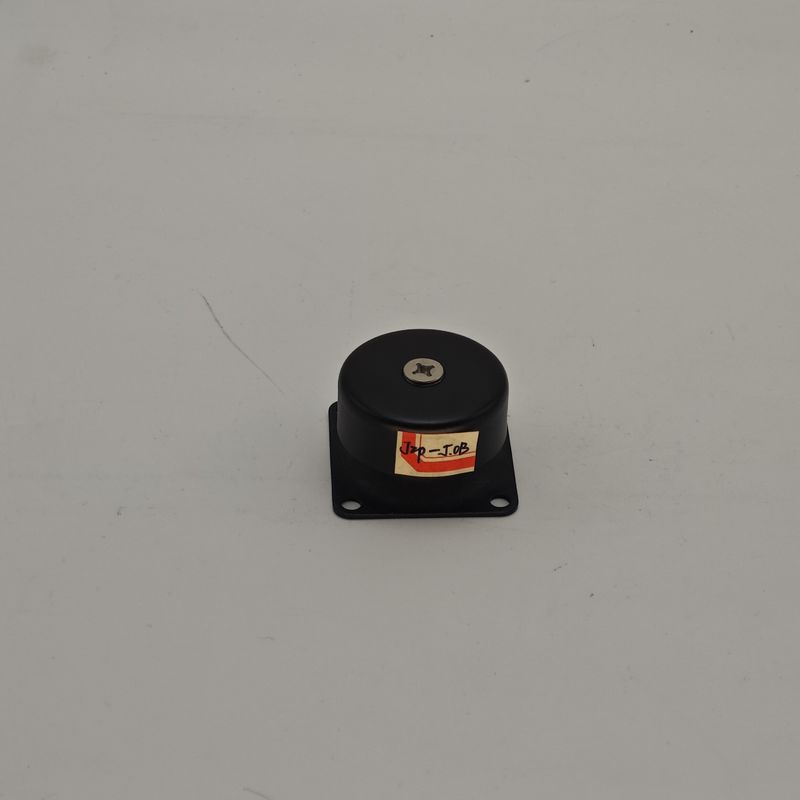

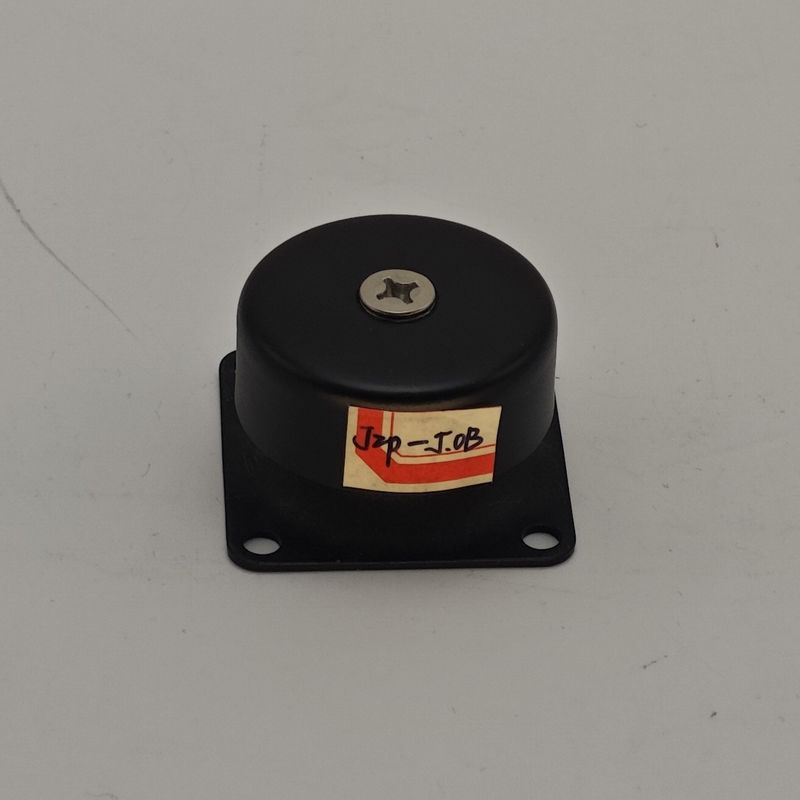

Name: JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: जेजेडपी-3.2-एससी-एससी1
Availability: InStock

घर > उत्पादों > रबर शॉक अवशोषक >

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

Hoan

मॉडल संख्या:

जेजेडपी-3.2-एससी-एससी1

हमसे संपर्क करें

बोली मांगें

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

उत्पाद का विवरण

लागू उद्योग:

ऊर्जा और खनन

गुंजयमान आवृत्ति:

5-10Hz

भिगोना अनुपात:

0.5

पत्तन:

Xi'an या निर्दिष्ट

स्थापना प्रकार:

क्षैतिज लंबवत

कंपन अलगाव प्रकार:

निष्क्रिय

वायर रस्सी सामग्री:

कलई चढ़ा इस्पात

सापेक्ष उत्पाद:

बैकड्राफ्ट स्पंज

वज़न:

0.2 किलो

सामान:

जाल

कंपन अलगाव:

90% तक

प्रमुखता देना:

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

संबंधित उत्पाद

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

सबसे अच्छी कीमत पाएं

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

सबसे अच्छी कीमत पाएं

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

सबसे अच्छी कीमत पाएं

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

86-29-88292913

अब संपर्क करें

उत्पाद का वर्णन

JZP-3.2-SC-SC1 The Innovative Rubber Shock Absorber for Precision Equipment Stability

JZP-SC-SC1 Series Friction Damping Vibration Isolator

Redefining stability for precision equipment in manufacturing, laboratory measurement, and high-end communications applications. The JZP-sc-sc1 series from Xi'an Hoan Microwave Co., Ltd. provides an advanced solution for vibration isolation where even micron-level vibrations can compromise performance.

Advanced Friction Damping Technology

Unlike conventional spring or pneumatic isolators, the JZP-sc-sc1 series features an innovative friction damping mechanism that converts destructive vibration energy into thermal energy for dissipation. This technology acts as an "invisible steward" for your equipment, effectively suppressing both continuous low-frequency oscillations and sudden transient impacts.

Key Performance Advantages

Superior full-frequency vibration isolation performance
High damping characteristics significantly reduce resonance peaks
Ensures smooth equipment transitions during startup, shutdown, or external disturbances
Integrates efficient vibration isolation with high load-bearing capacity
Compact, maintenance-free design for reliable long-term operation

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	Same as above
JMZ-5.2-SC-SC1	5.2	Same as above
JMZ-6.0-SC-SC1	6.0	Same as above
JMZ-7.0-SC-SC1	7.0	Same as above
JZP-7.5-SC-SC1	7.5	Same as above
JZP-9.0-SC-SC1	9.0	Same as above
JZP-10.5-SC-SC1	10.5	Same as above
JZP-13.5-SC-SC1	13.5	Same as above
JZP-15-SC-SC1	15	Same as above

Customer Applications
