Place of Origin:
China
ब्रांड नाम:
Hoan
प्रमाणन:
ISO9001:2015
Model Number:
GR2-9.3A-A
दस्तावेज:
| Adjustability | Adjustable |
| After Warranty Service | Online support |
| Design Style | Industrial |
| Function | Reduce Camera Vibration |
| Warranty | 1 Year Limited Warranty |
| Core Components | Bearing |
| Applicable Industries | Energy & Mining |
| Package Contents | 1 Vibration Isolator |
| Mounting Type | Screw Mount |

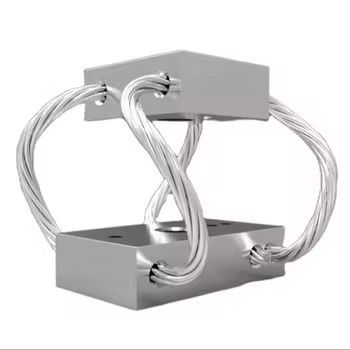

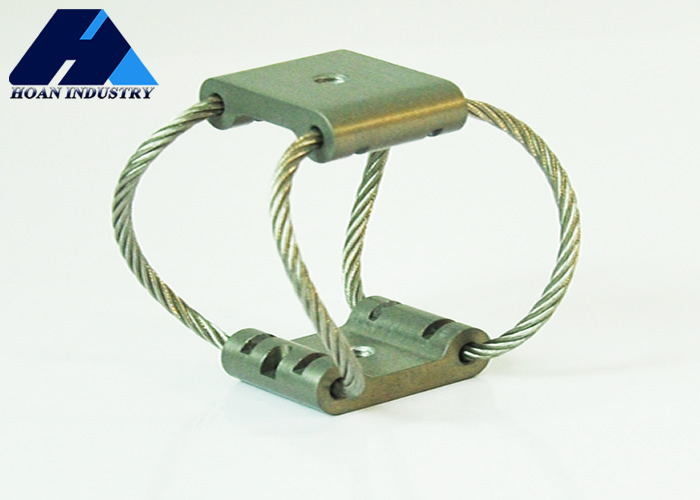

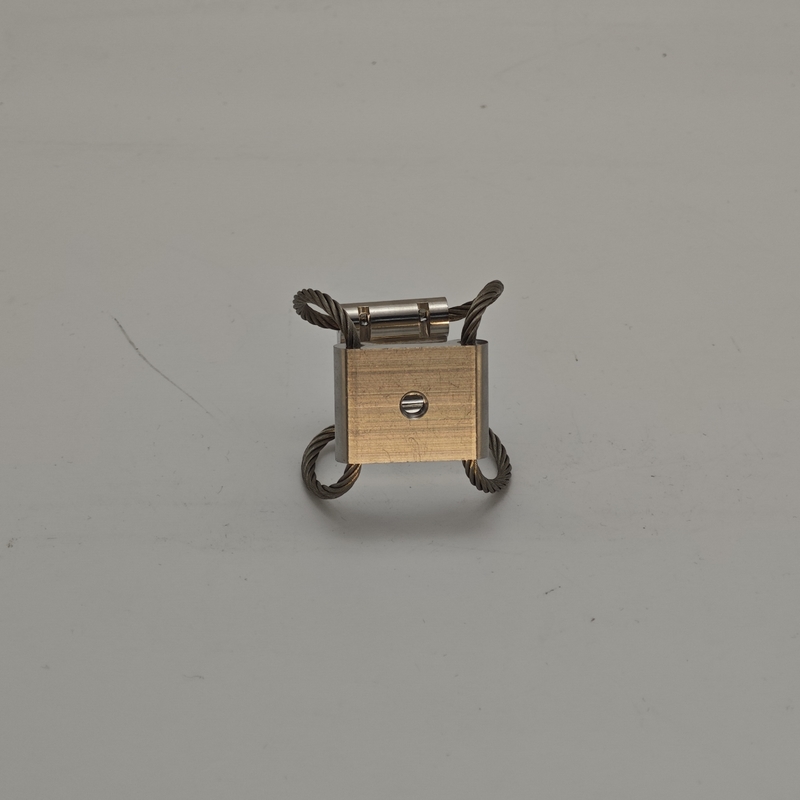

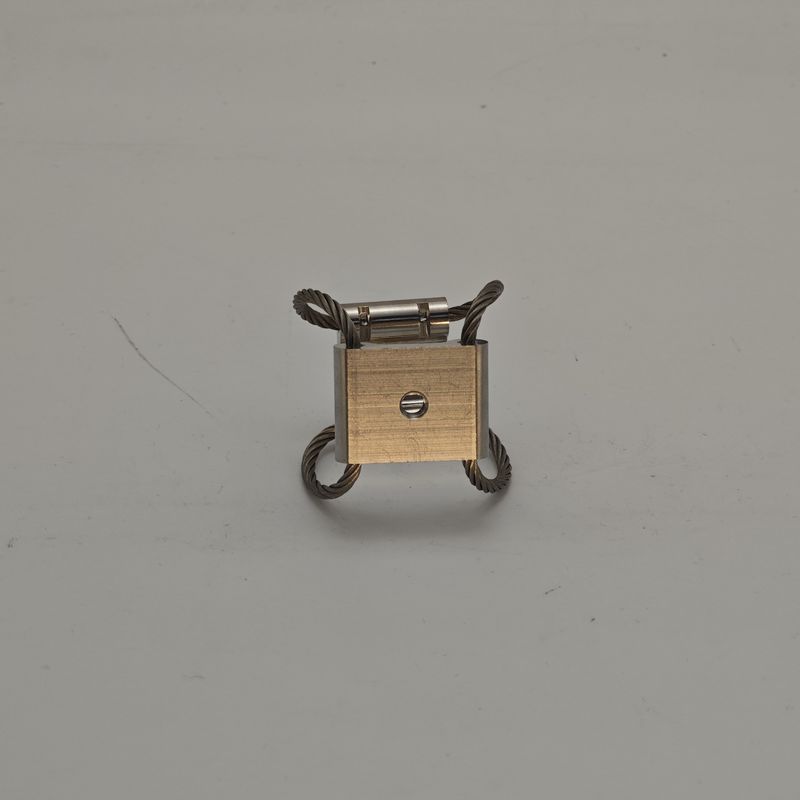

Long Service Life Guaranteed The Strict Heat Treatment Processes of GR2-9.3A-A Camera Vibration Isolators
The core of manufacturing GR series isolators begins with the ultimate selection of raw materials. Hoan Microwave insists on using high-strength stainless steel wires of specific grades, whose excellent tensile strength, toughness, and corrosion resistance lay the foundation for the product's long service life.
The braiding and forming of the wire rope is a key technical step. Through specially designed equipment with precise control, Hoan ensures that the steel wire strands are meticulously wound at preset angles, tensions, and numbers of turns. This process determines the final nonlinear stiffness and damping characteristics of the isolator, directly affecting its vibration isolation performance.
The formed components undergo strict heat treatment processes to eliminate internal stress, stabilize the structure, and further enhance the material's mechanical properties and fatigue life.
Hoan Microwave implements strict inspections based on the "Three Same Principles" (same material, same process, same standard) throughout production. From wire rope parameters to final product characteristics, all undergo multi-batch verification using high-precision testing equipment.
| Model | Height(mm) ±1.5 | Width (mm) | Weight (kg) | Mounting Options | Thru Hole (mm) | Thread (mm) | C'sink (°) |
|---|---|---|---|---|---|---|---|
| GR2-12A-A | 16 | 20 | 0.06 | A,B,C,D,E,S | ∅3.3 | M3*0.5 | 90 |
| GR2-9.3A-A | 19 | 21 | 0.06 | ||||
| GR2-6.7A-A | 23 | 24 | 0.07 | ||||
| GR2-4.9A-A | 27 | 27 | 0.07 |
| No. | Model | Max Static Load (mm) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ks(Shock) (KN/m) |
|---|---|---|---|---|---|
| 1 | GR2-12A-A | 12 | 5.8 | 11 | 6.1 |
| 2 | GR2-9.3A-A | 9.3 | 8.4 | 8.8 | 4.0 |
| 3 | GR2-6.7A-A | 6.7 | 11.7 | 5.3 | 1.9 |
| 4 | GR2-4.9A-A | 4.9 | 15.7 | 3.5 | 1.2 |
| Applications | Typical Equipment | Protection From | Operational Advantages |
|---|---|---|---|
| Shipboard | Electronics, Computers, Machinery | Explosive blast, Inherent vibration, Storms | Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics | Rough terrain, Poor road conditions, Collision | Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Shipping Containers | Optics, Instruments, Missiles, Electronics | Transit, Handling drop, Loading/Unloading | Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air | Temperature and altitude extremes, Lightweight |
| Industrial Equipment | Centrifuge, Dryers, Pumps | Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness | Long life, Maintenance-free, Corrosive environments |
