उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Hoan
प्रमाणन:
ISO9001:2015
मॉडल संख्या:
JGX-0958A-149A
वीडियो
वीडियो
JGX-0958A Series

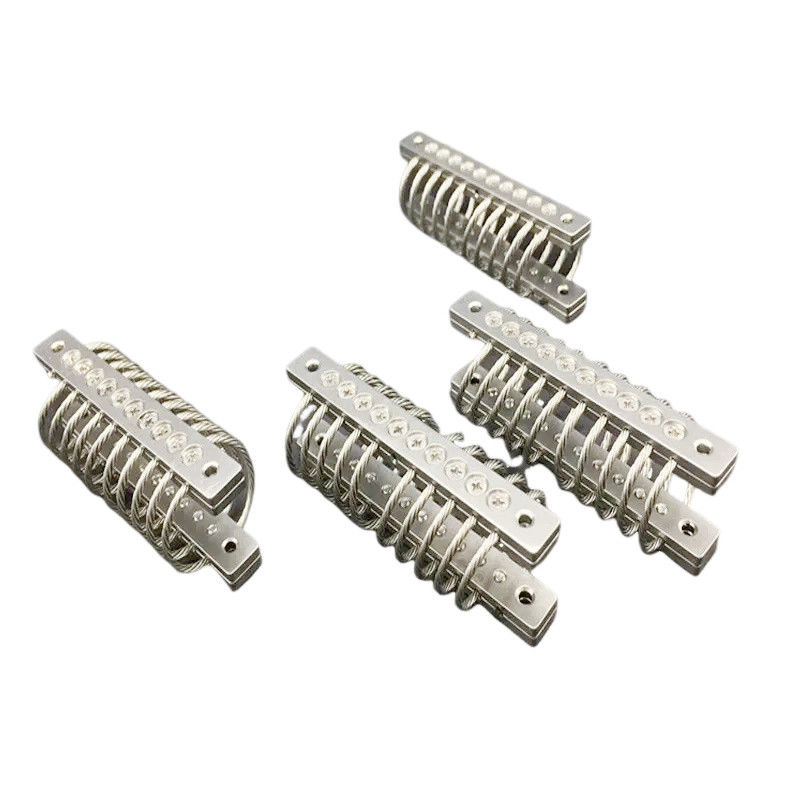

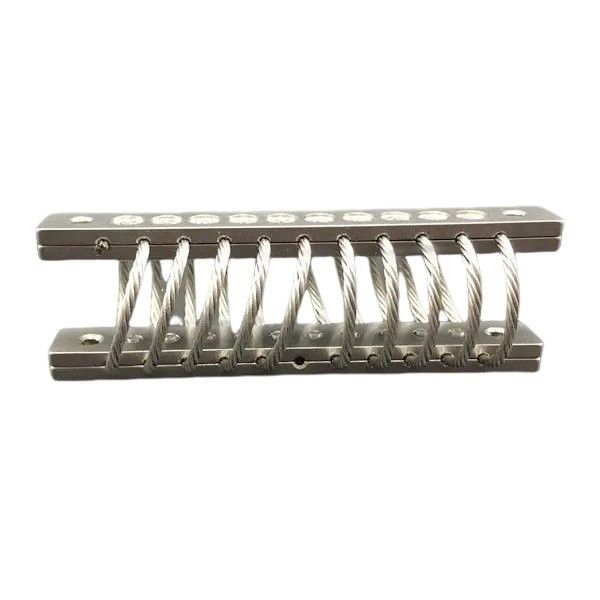

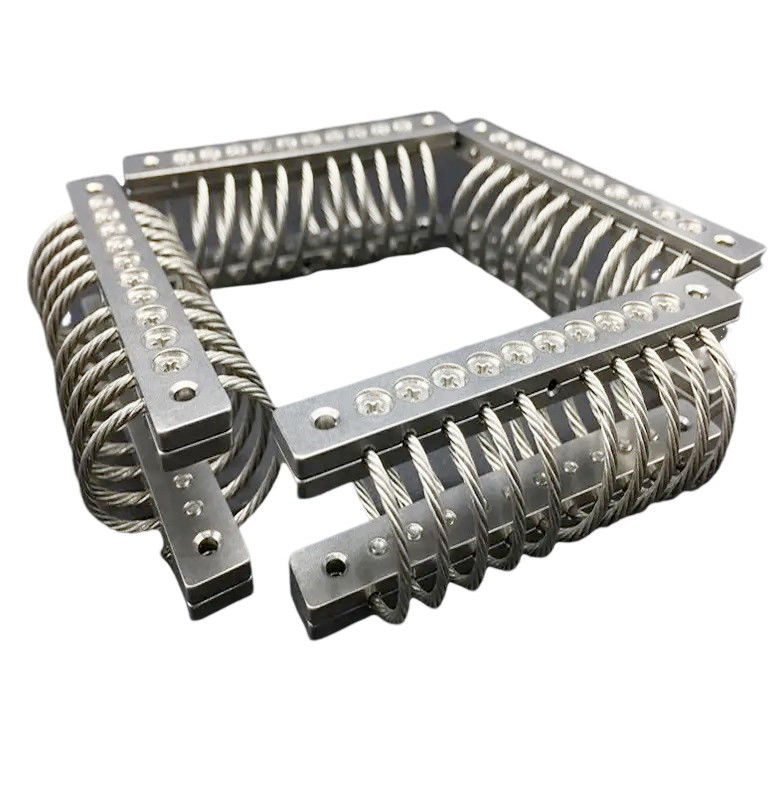

The JGX - 0958A steel wire rope vibration isolator produced by Xi'an Hoan Microwave Co., Ltd. is a high - performance vibration isolation device specially designed for precision instruments, electronic equipment and mechanical systems. Made of high-quality stainless steel wire rope wound into shape, this product has excellent impact resistance and vibration isolation performance. It can effectively absorb high-frequency vibrations and impact energy, protecting equipment from damage. With a compact structure and simple installation, it is suitable for aerospace, ships, communication base stations and other fields, meeting the use requirements in harsh environments.
Static-Load Curve
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958A-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958A-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958A-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958A-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958A-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958A-43A | 43 | 68.1 | 67 | 26 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958A-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958A-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958A-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958A-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958A-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958A-43A | 38 | 95 | 47 | 16 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958A-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958A-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958A-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958A-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958A-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958A-43A | 20.4 | 71.7 | 19 | 19 |
